| Max. working speed | 30000 pcs/hour |
| Thickness of paper | 55 to 250 GSM |
| Size Maximum | 5/11 inches |
| Size Minimum | 2/2 inches |
| Power of motor | 1.1 KW |
| Power of Vacuum pump | 3 KW |
| Weight of machine | 1000 KG |
| Overall dimension | 1500 × 980 × 1450 mm (L × W × H) |
| Packing size | 1540 × 980 × 1540 mm (L × W × H) |
| Net weight | 1000 KG |
| HSN code | 84412000 |
A suction, the lower most blank of the pile on the feed plate is fed into the machine, in this way, the pile of the blanks can be replenished while the machine is being operated; Assisted by the suction cylinder and with the advantage of pressing the trace, the fence folding unit carries out the folding with high speed and accuracy. The width of envelope of flat bag can be reset lightly while the machine is running. Rotary glue applying unit meets requirements of gluing envelopes or flat bags, when it is being withdrew, the operation of cleaning is easy. The simple but reliable longitudinal folding unit is used to fold the two flaps. The counter is capable of batching finished envelopes or flat bags according to present quantities through electromagnetic control unit.
The automatic envelope window patching machine is widely used for sticking films on the windows of various CD or DVD's disc envelopes, bills and official purposes envelopes, etc...
The automatic carton or box window Film Pasting Machine is widely used for sticking films on the windows of various carton or boxes, like tissue box, medicine box and shirt box, beverage cartons...
Small Paper Bag Making Machine is widely is suitable for the economic production of Huge range of Envelope Making Machines consists of Multi Functional Envelope Making, Pocket Envelope Making...

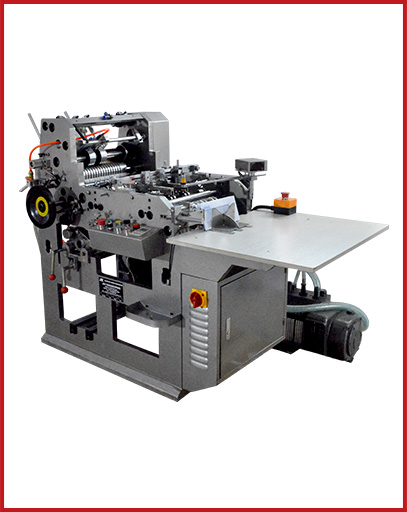

Pocket Envelope Making Machine, an important standard model in our series, is designed mainly for the envelopes of large or medium-sized gumming (cold glue) with protection strip...
Envelope Die Cutting Machine is widely used for envelope window cutting, envelope cutting, paper cutting, etc.
This is comprise for A4 or A3 size poster strip gumming and also comprised for Strip gumming for ready envelope. Gumming will be done using silicon paper or release paper...
Liner Carton Machines are used in making and packaging cartons such as Gram masala Pouch with carton, Ghee Pouch with Carton, etc...
Automated feeding system with suction, allowing for continuous production and easy replenishment of blank stacks..
