| Blank Size | 20" x 24" |
| Speed | Up to 150 blanks / minute (depends upon stock used) |
| Paper Weight | 55 gsm to 200 gsm |
| Window Size Max | 11” x 12” (280mm x 304mm) |
| Electrical | 2 HP AC Motor & AC Drive with thyraster control, A. C. Motor 2 h.p. with pump single phase & Three Phase |
| File Capacity | 9000 paper of 60 gsm |
| Film | 15 to 125 micron (Polyester, BOPP or PVC |
| Counter | Digital preset counter |
| Machine Size | Height 56" Length 88" Width 44” |
| Machine Weight | 800 kg approx |
| Blank Size | 20" x 24" |
| Speed | Up to 200 blanks / minute (depends upon stock used) |
| Paper Weight | 55 gsm to 200 gsm |
| Window Size Max | 11” x 12” (280mm x 304mm) |
| Electrical | 2 HP AC Motor & AC Drive with thyraster control, A. C. Motor 2 h.p. with pump single phase & Three Phase |
| File Capacity | 9000 paper of 60 gsm |
| Film | 15 to 125 micron (Polyester, BOPP or PVC |
| Counter | Digital preset counter |
| Machine Size | Height 56" Length 88" Width 44” |
| Machine Weight | 800 kg approx |

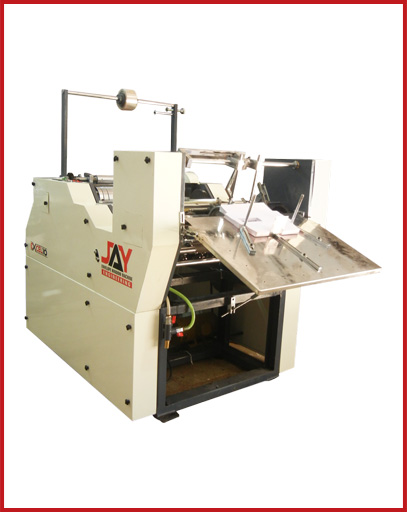

The automatic envelope window patching machine is widely used for sticking films on the windows of various CD or DVD's disc envelopes, bills and official purposes envelopes, etc.
The paper feeder parts is controlled by the vaccum suction, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life, process the paper products to the conveying parts steady and orderly.
The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape.
The gluing parts adopt the adjustable parts gluing structure, it is convenient for adjustable according to the paper requirement and the gluing position, save the gluing quantity, it is easy for pulling out the gluing parts, convenient for washing. The gluing roller stopped the gluing when stopped the machine.
The cutting parts includes two blades. The upper roller is the cutting film roller with the two blade, finishing the cutting of the film. If customer need angular cutting and scoring option, we will add unit for this function.
The automatic envelope window patching machine is widely used for sticking films on the windows of various CD or DVD's disc envelopes, bills and official purposes envelopes, etc...
The automatic carton or box window Film Pasting Machine is widely used for sticking films on the windows of various carton or boxes, like tissue box, medicine box and shirt box, beverage cartons...
The automatic carton or box window Film Pasting Machine is widely used for sticking films on the windows of various carton or boxes, like tissue box, medicine box and shirt box, beverage cartons...
